铝合金带铝合金电缆--YJLHVS2-Xingsheng Cable Co., Ltd.

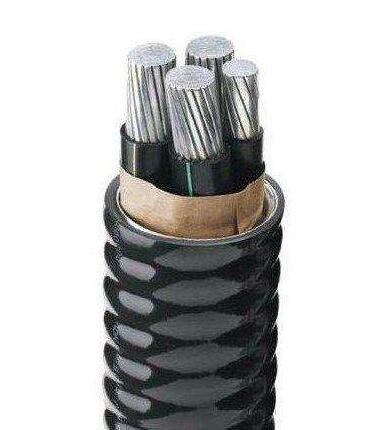

铝合金带铝合金电缆--YJLHVS2

适用范围： 1.适用于600V~35kV电压等级；适用于90℃下干燥或潮湿场所； 2.可室内、室外安装，可垂直安装，也可托架或沿墙敷设，弯曲半径最小为7倍外径，也可360°弯曲； 3.适用于民用、商业、工业、大型场馆、娱乐场所、矿井、地铁及各类级别危险地区等场所

Key words:

铝合金电缆铠装铝合金电缆

Category:

Aluminum alloy cable

Send email:

xingshengdianlan@163.com

Inquiry

Related information

Product details

产品执行标准：GB/T 1838.3-2001 阻燃C级铝合金电缆导体完全符合GB3956，也符合GB/T 12706.1及IEC60502最新版的各项标准；

产品用途：

适用于600V~35kV电压等级；适用于90℃下干燥或潮湿场所；可室内、室外安装，可垂直安装，也可托架或沿墙敷设，也可地下直埋安装；弯曲半径最小为7倍外径，也可360°弯曲；适用于民用、商业、工业、学校、大型场馆等场所。

产品特点：

价格：实现同等电气性能的前提下，稀土高铁铝合金电缆比铜芯电缆的综合应用成本大约低50%以上

导体：抗蠕变、高柔韧、强延展、低反弹、连接稳定

绝缘：耐高温、防燃烧、抗老化、强耐用、低碳环保。

外护套：采用无铅无镉的PVC，可在潮湿场所安装，亦可直埋或敷设在水泥中使用。

使用：铝合金电力电缆在美、加等发达国家已得到广泛应用。

产品主要功能：

AC90铝合金带铝合金电缆采用铝合金导体制造，截面规格从16mm²到400mm²。线芯为ASTM B级压紧绞股型，达到GB/T 18380.3-2001阻燃C级。

YJLHV8铝合金电缆符合NB/T 42051-2015《额定电压0.6/1kV铝合金导体交联聚乙烯绝缘电缆》标准，采用的铝合金导体符合最新版GB/T 30552-2014《电缆导体用铝合金线》的各项标准。。

在需铠装机械保护的场合下，AC90铝合金电缆具有非常广泛的应用。它们可用于非燃性建筑,如办公楼、旅馆、购物中心和工厂中的照明、插座及其它电气设备的馈电线路。

AC90铠装电缆采用工作温度90℃的交联聚乙烯绝缘层及黑色PVC外护套。
